Leírás

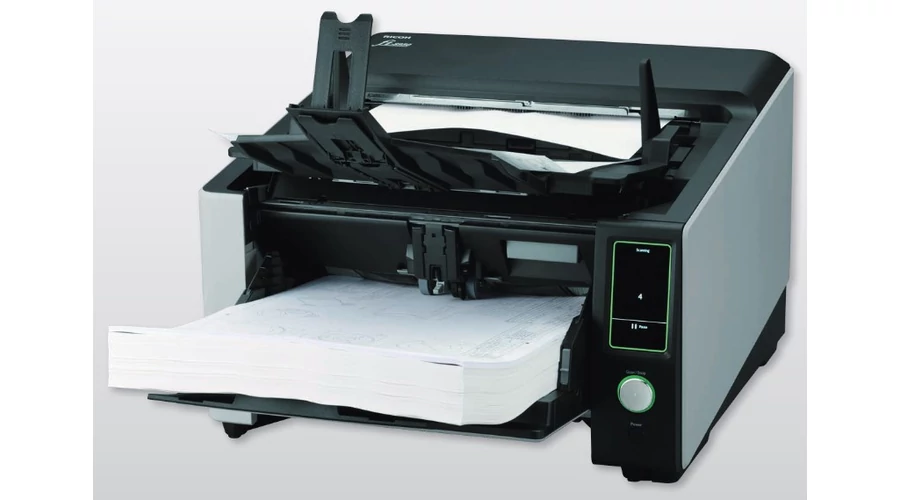

The RICOH fi-8820 Image Scanner offers you the performance, reliability, and usability to maximise productivity. The result? A highly flexible, reliable and cost-effective scanning operation.
The fi-8820 is designed for operations that need high-performance on a limited budget. With a generous Automatic Document Feeder capacity of 500 sheets and 120ppm speed, it will handle continuous scanning of large volumes of documents.
Consistent performance is ensured by high-speed USB 3.2 or Gigabit LAN connectivity, and the fact that its wide 105° opening angle and internal LED lights make it easy to maintain.
Stoppages are avoided thanks to state-of-the-art paper protection features such as Stapled Documents Detection, and the Intelligent Multi-Feed function, which understands when to stop for labels, sticky notes or photos, and when not to.
Many different types of documents can be handled without fuss or interruption because of its two feed paths; the classic U-turn ADF, and the straight-through path which accepts documents up to 1.25mm thick. And mixed batches are no problem thanks to the Automatic Profile Selection feature.
RICOH Image Scanners deliver industry-leading OCR accuracy rates and exceptional image quality. This is achieved through a combination of our unique Clear Image Capture technology, and PaperStream IP driver which also removes noise and optimises file size for lower-cost storage.
Paraméterek
| Product Name RICOH fi-8820 Image Scanner | |
| Scanner Type | |
| Automatic Document Feeder (ADF), Manual Feed, Duplex | |
| MID-VOLUME PRODUCTION Scanner | |
| ADF Capacity | |
| 500 x A4 80 g/m² | |
| 500 x Letter 20 lb | |
| Scanning Colour Modes | |
| Colour, Greyscale, Monochrome, Automatic (Colour / Greyscale / Monochrome detection) | |
| Optical Resolution | |
| 600 dpi | |
| Maximum Output Resolution | |
| 1,200 dpi (by driver) | |
| Image Sensor Type Contact Image Sensor (CIS) x 2 with Clear Image Capture Technology | |
| Light Source RGB LED (Front & Back) | |
| Scanning Speed | |
| 120 ppm (A4 Landscape) | |
| 95 ppm (A4 Portrait) | |
| Media Support Standard Sizes A3, A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Double Letter, Legal and Custom Size. | |
| Custom Sizes | |
| Minimum | 48 x 70 mm |
| Maximum | 305 x 431.8 mm |
| Paper Weight | |
| U-turn | 20-256 g/m² |
| Straight | 20-570 g/m² |
| Envelope | ~1.25 mm |
| Long Page Scanning | |
| 6,096 mm (240 ") | |
| Multifeed Detection | |
| Ultrasonic multi-feed detection sensor x 3 | |
| Left, Centre, Right | |
| Image Processing Functions | |
| Automatic Colour Detection, Advanced DTC, Automatic Rotation, Background Pattern Removal, Blank Page Detection, Character Extraction, Cropping, De-Screen, De-Skew, Dither, Divide Long Page, Dropout Colour (None / Red / Green / Blue / White / Saturation / Custom), Dynamic Threshold (iDTC), Edge Correction, Error Diffusion, Halftone, Hole Punch Removal, Image Emphasis, Index Tab Cropping, Multi image Output, SDTC, Split image, sRGB Output, Static Threshold, Vertical Streaks Reduction | |
| Output File Types | |
| PDF, Searchable PDF, PDF / A, TIFF, Multi-Page TIFF, Bitmap, JPEG, JPEG2000 | |
| Paper Separation Method Brake Roller | |
| Expected Daily Volume 100,000 | |
| Local Interface USB Port USB 3.2 Gen 1/ 3.0 / 2.0 / 1.1 (Type-B Connector) | |
| Ethernet Interface Ethernet Specification 10BASE-T/100BASE-TX/1000BASE-T | |
| Ethernet Port Connector Type RJ-45 | |
| Human Interface LCD Touchscreen 4.3" TFT LCD with Touchscreen operation | |
| Image Memory 2,048 MB | |
| Power Source Mains AC | |
| Power Requirements 100V - 240V AC ±10 % (50 / 60 Hz) | |
| Power Consumption Operating Mode | |
| 70 W or less | |
| ECO mode 40 W or less | |
| Sleep Mode | |
| 2.5 W or less (LAN) | |
| 1.5 W or less (USB) | |
| Standby Mode 0.2 W or less | |
| Operating Environment Operating Temperature Range 5°C - 35°C (41°F - 95°F) | |
| Operating Humidity Range 20% - 80% (non-condensing) | |
| Device Colour Black / Light Grey | |
| Device Dimensions (Height x Width x Depth) | |
| 315 mm x 460 mm x 430 mm | |
| 12.4" x 18.1" x 16.9" | |
| Device Weight (approx) | |
| 23 kg | |
| 50.7 lb | |
| Environmental & Regulatory Compliance ENERGY STAR® / RoHS | |
| Recommended Windows Driver | |
| PaperStream IP (TWAIN) | |
| PaperStream IP (TWAIN x64) for 64-bit applications | |
| PaperStream IP (ISIS) | |
| Software | |
| PaperStream Capture | |
| PaperStream ClickScan | |
| PaperStream ClickScan Searchable PDF Option | |
| Software Operation Panel | |
| Error Recovery Guide | |
| Scanner Central Admin Agent | |
| Network Setup Tool for fi Series | |
| fi Series Online Update | |
| 1 Year Standard Warranty | |
| Onsite Repair Next Business Day Response +1 | |
| Preventative Maintenance visit. | |
| Valid for 1 year from date of scanner purchase. | |
| Includes Spare Parts, Labour and Travel costs. | |
| Included in the price of a new scanner product. |
