Leírás

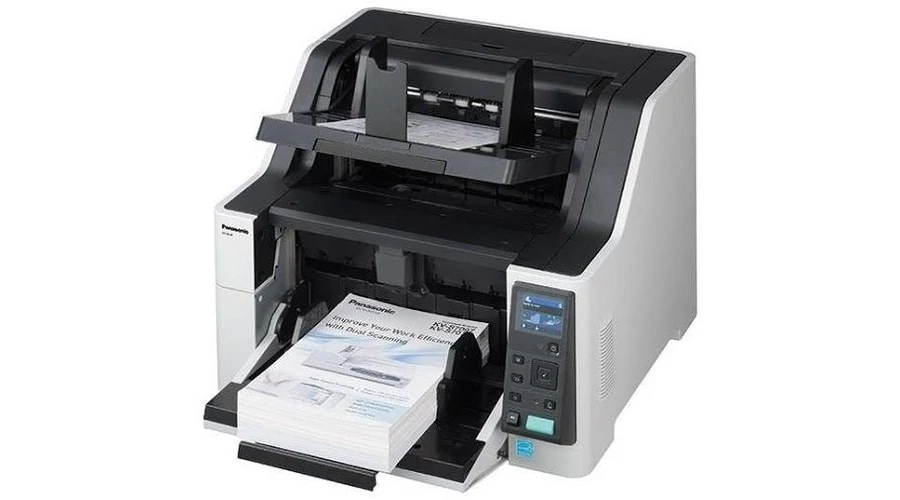

Up to 750 A4 pages can be set in a single run. This eliminates the need to set up scanning parameters time after time, and brings greater efficiency to scanning jobs.
Double-sided scanning of documents from business-card size all the way to A3 can be done with a single scan. Plus, double-sided scanning is done at the same speed as single-sided scanning. This eliminates the work of pre-sorting, and prevents pages from being missed when scanning.
Documents from business-card size all the way to A3 with a variety of paper thicknesses can be fed at the same time – ideal for offices that handle a wide range of document types.
The highly reliable paper feed system lets you scan long size documents. This is ideal for scanning electrocardiograms (EKG) or other special documents.
In addition to the ordinary curved path, a straight path ensures high reliability with stiff or thick documents. The possibilities for both usage and installation location are almost unlimited.
Paraméterek
| Scanning Face | Duplex scanning |
| Scanning Method | RGB 3-Line Color CIS / Sensor:CMOS |
| Scanning Resolution | ICP/TWAIN 50 – 600 dpi (1 dpi step), 1,200 dpi (Interpolated), Optical:300 dpi / 600 dpi (Automatic switch) ● ISIS 100 – 600 dpi (1 dpi step), 1,200 dpi (Interpolated), Optical:300 dpi / 600 dpi (Automatic switch) |
| Speed (Color and Binary) 200 / 300 dpi | Landscape A4 - 120 ppm ● Portrait A4 - 85 ppm |
| Feed Tray capacity | Up to 750 sheets (80 g/m2; A4 High-quality woodfree paper) ● Up to 500 sheets (80 g/m2; A3 High-quality woodfree paper) |
| Other Functions | Length Control • Barcode detection • Control sheet • Patch code detection (Type 2, 3, T) • Long paper mode • Double feed detection (KV-S8147:5 positions, KV-S8127:3 positions) • Double Feed Skip |
| Image Output | Binary 1bit, Grayscale 8bit, Color 24bit, MultiStream (Color & Binary or Gray & Binary) |
| Internal Video Processing | 1,024 levels (10bit) |
| Tonal Gradation (Bitonal Mode) | Dither, Error diffusion, Grayscale (8 bit), Binary |
| Image Compression | MH, MMR (Software ICP), JPG |
| Paper Size | Minimum - 48 mm x 70 mm ● Maximum (Automatic feeding) - 305 x 432 mm |
| Max. Imaging Size | 305 mm x 5,461 mm |
| Paper Weight | Automatic feeding - 20 g/m2 – 255 g/m2 ● Manual feeding:20 g/m2 – 550 g/m2 (Straight path (rear exit)); 20 g/m2 – 255 g/m2 (U-turn path (front exit)) |
| Interface | USB 3.1 Gen 1 (backward compatible) |
| GENERAL | |
| Dimensions (W x D x H) | 545 mm x 474 mm x 435 mm |
| Weight | 44 kg |
| Power Requirement | AC100 – 120 V, 50/60 Hz, 2.7 A; AC100 – 240 V, 50/60 Hz, 2.7 – 1.5 A |
| Power Consumption | Scanning 140 W or less; Standby 35 W or less; Sleep 2.0 W or less; Power OFF 0.5 W or less |
| Operating Environment | 5 °C to 35 °C, 20% to 80% RH |
| Storage Environment | -10°C to 50 °C, 8% to 75% RH |
